Product Info

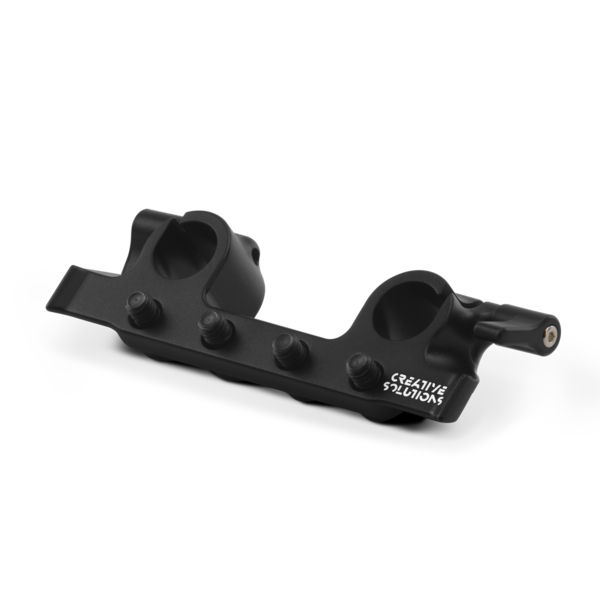

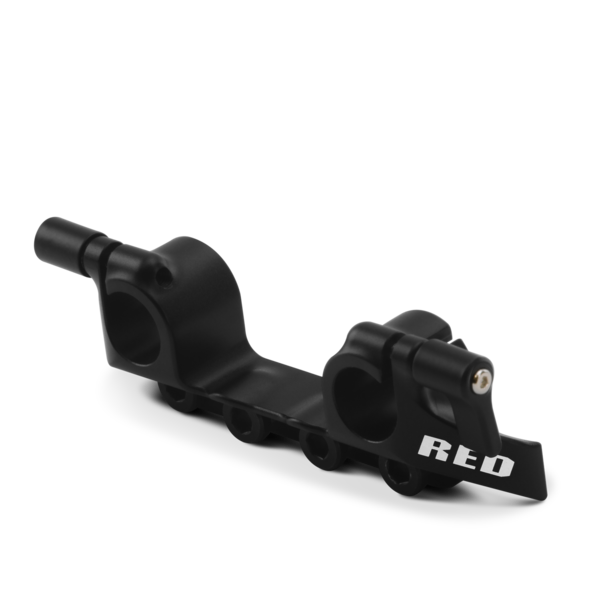

The V-RAPTOR® XL Top 15 mm Rod Support Bracket securely attaches to the front of the camera and provides two 15 mm LWS spaced rod clamps, allowing for different shooting configurations such as mounting an EVF or focus, iris, zoom motors.
For replacement or additional components, such as screws, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | - | - | - | ✓ |
| DIMENSIONS | Height: .79 in (20.0 mm) Width: 1.37 in (34.80 mm) Depth: 4.43 in (112.60 mm) |
|---|---|
| WEIGHT | Approximately 0.19 lbs (84.29 g) |
| MATERIAL | 7075 Aluminum |
| CAMERA MOUNTING | Via 4x Integrated Top 1/4-20 Threads |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.
