Product Info

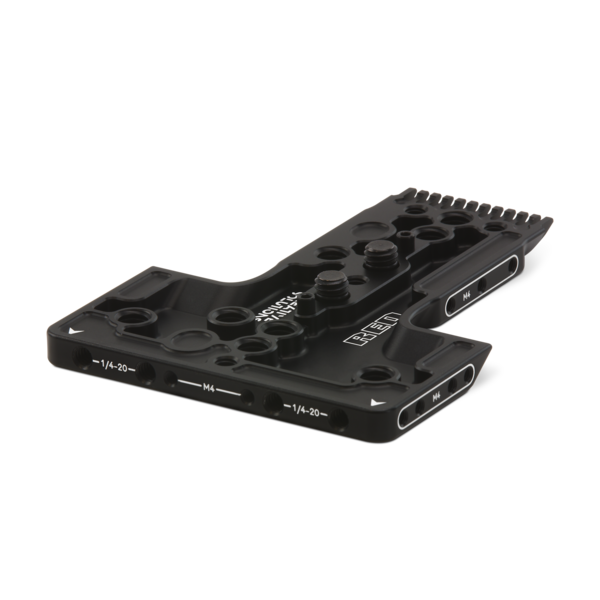

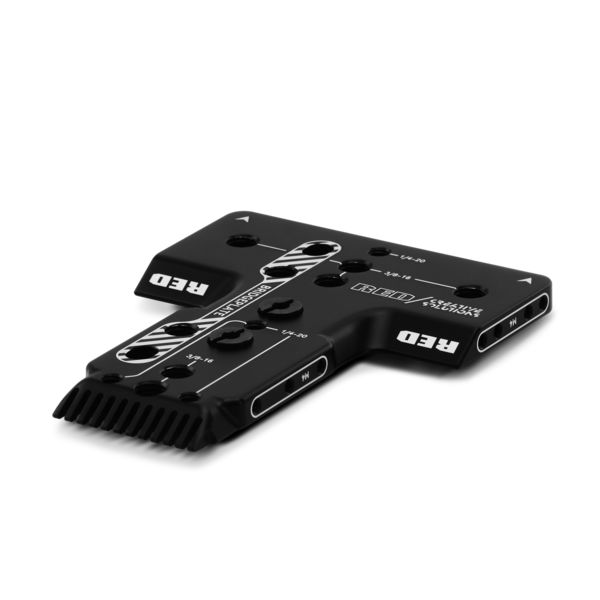

The V-RAPTOR® XL Riser Plate attaches to the bottom of the camera and allows you to attach standard 15 mm and 19 mm studio baseplates to reach the correct optical height. It also provides 1/4-20 and 3/8-16 mounting points for additional mounting configurations.
For replacement or additional components, such as screws, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | - | - | - | ✓ |
| DIMENSIONS | Height: 5.39 in (136.78 mm) Width: 4.26 in (108.25 mm) Depth: .36 in (9.10 mm) |
|---|---|
| WEIGHT | Approximately 0.35 lbs (160.49 g) |
| MATERIALS | 7075 Aluminum |
| CAMERA MOUNTING | 2x 3/8-16 Captive Mounting Screws |
| BASEPLATE MOUNTING | Standard 15mm Studio 19mm Studio Offset Mounting Multiple 1/4-20 and 3/8-16 points |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.
