Product Info

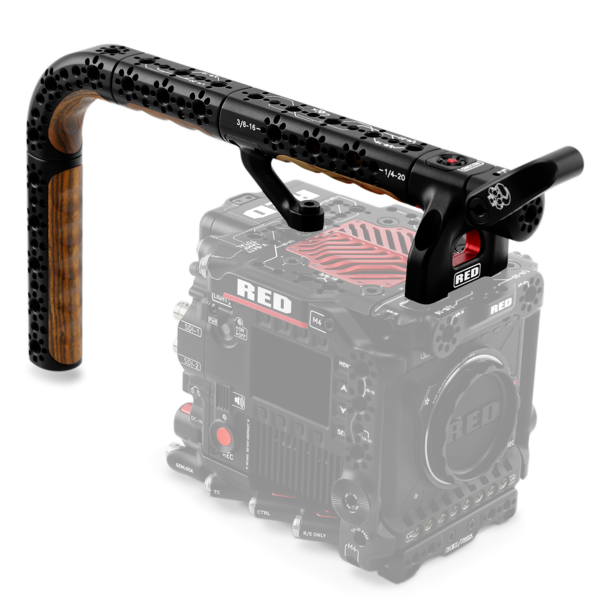

V-RAPTOR® Top Handle w/ Extensions kit provides a complete modular Top Handle solution for V-RAPTOR® allowing for light-weight or extended wrap around style configurations.

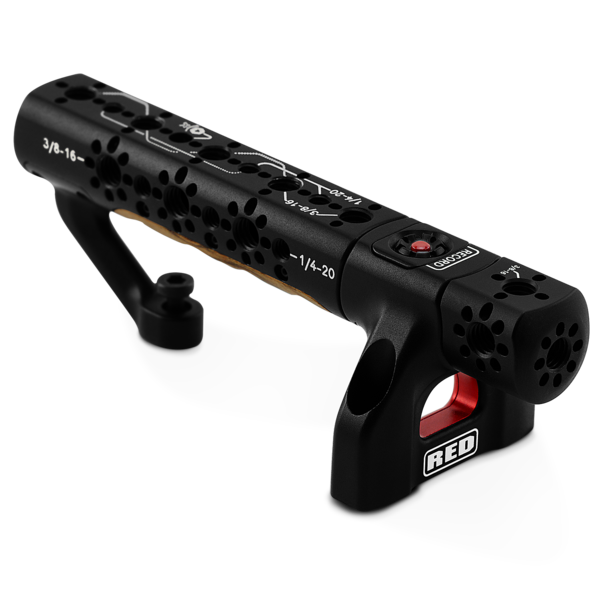

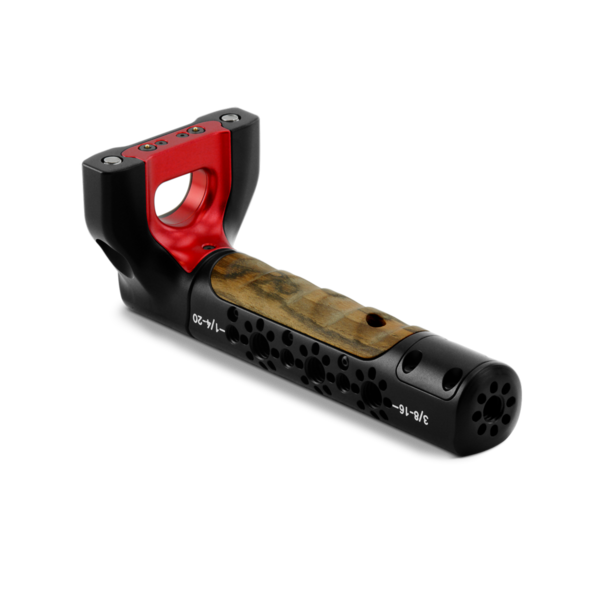

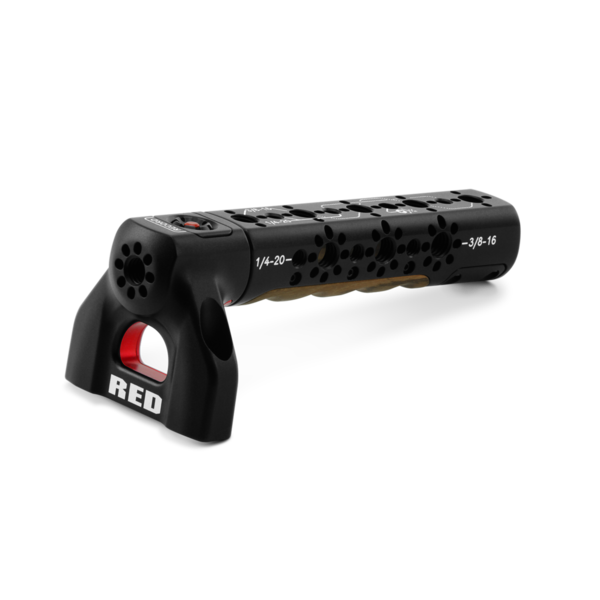

V-RAPTOR® Top Handle features a dedicated Start/Stop Button, ergonomic Bocote wood inlays, and multiple 3/8-16 and 1/4-20 mounting points. Additionally, includes 1”, 3” and 5” Top Handle Extension pieces, Elbow piece and a 15mm Monitor Mount.
NOTES:
- V-RAPTOR® Tactical Top Plate is required to secure Top Handle Support Arm to the camera.
- For issues or troubleshooting, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | - | ✓ | ✓ | -* |
V-RAPTOR TOP HANDLE
| DIMENSIONS | Height: 2.36 in (60 mm) Width: 6.28 in (159.5 mm) Depth: 2.63 in (66.8 mm) |
|---|---|
| WEIGHT | Approximately 0.54 lbs (245.93 g) |
| MATERIALS | Aluminum & Bocote Hardwood |
| MOUNTING TO V-RAPTOR | 2x 1/4-20 Captive Mounting Screws plus optional rear 1/4-20 support arm when used with V-RAPTOR Tactical Top Plate |
| CONTROLS | Run/Stop |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.
- 1x V-RAPTOR Top Handle

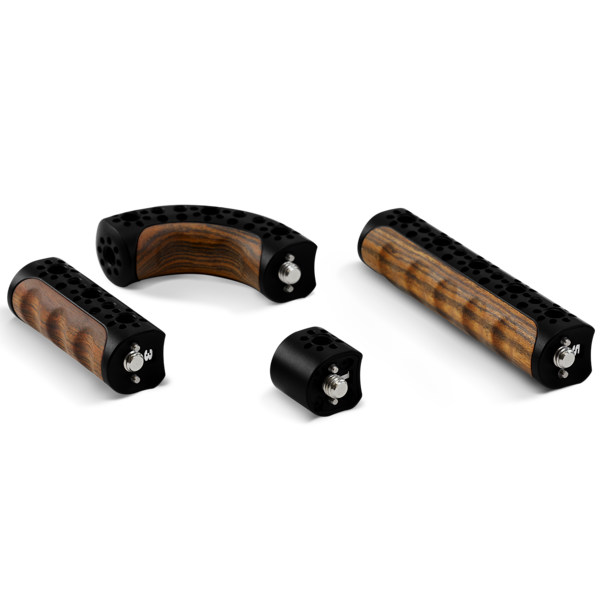

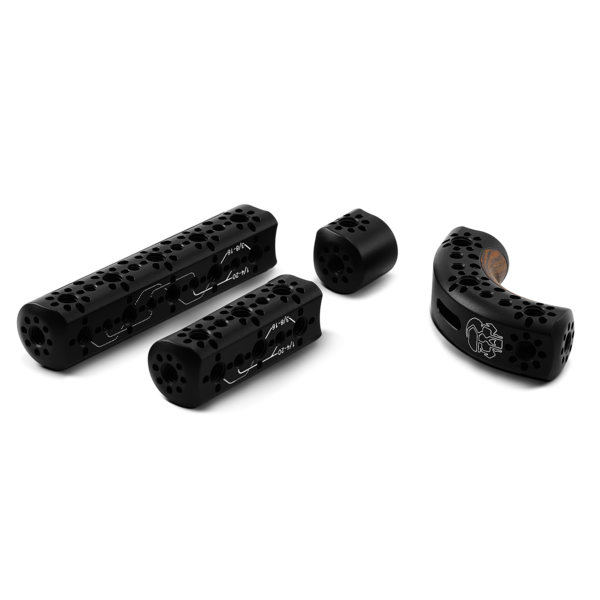

- 1x 1" Top Handle Extension Piece
- 1x 3" Top Handle Extension Piece
- 1x 5" Top Handle Extension Piece

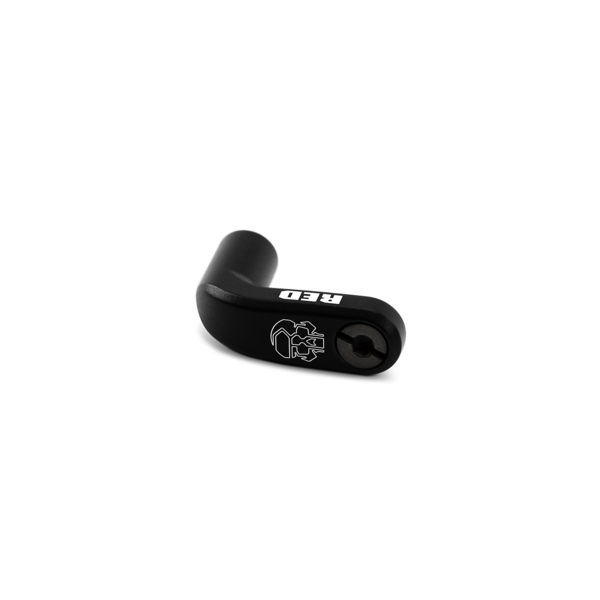

- 1x Elbow Piece
- 1x 15mm Monitor Mount
