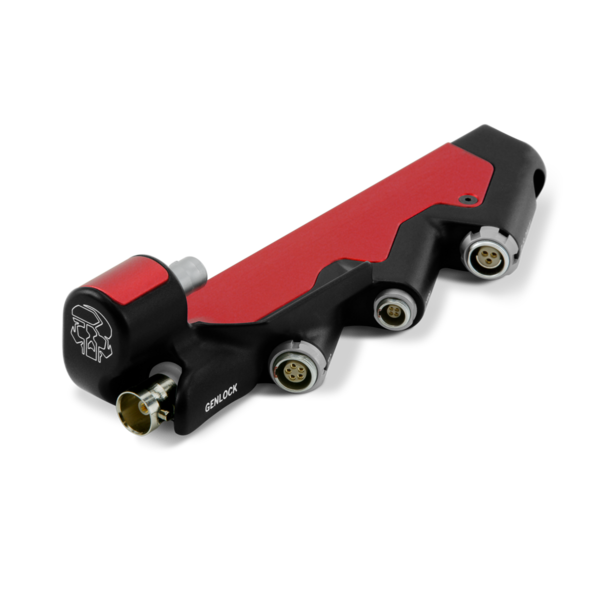

V-RAPTOR® Expander Blade is designed to support professional shooting configurations. With options for video and communication connections, including Genlock (BNC), Timecode 5-Pin, R/S (Run/Stop) 3-Pin, and RED CTRL 4-pin. The V-RAPTOR Expander Blade creates the flexibility to support a vast array of options when it comes to how users will rig their V-RAPTOR®.
NOTES:

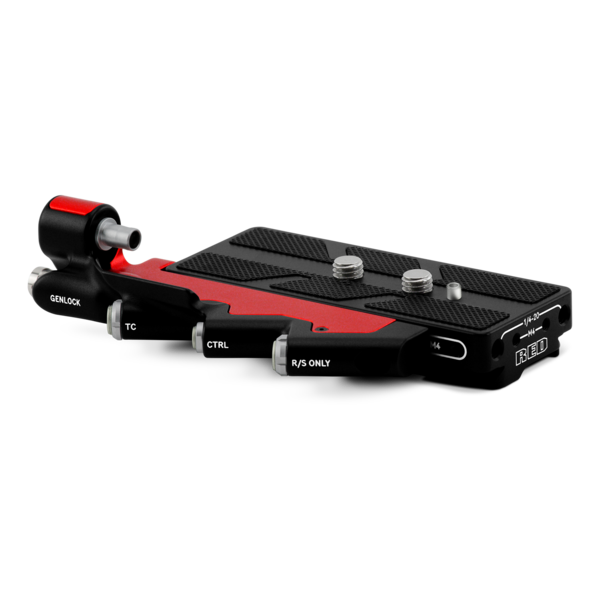

- The V-RAPTOR® Quick Release Platform Pack Arca Plate (included w/ Expander Blade) is RRS Dovetail Standard (38mm) and is required for the V-RAPTOR Expander Blade to attach to the camera.
- The 3-Pin Run/Stop connection is for trigger only and does not supply power.
- For issues or troubleshooting, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | - | - | ✓ | - |
| DIMENSIONS EXPANDER BLADE | Height: 1.28 in (32.5 mm) Width: 5.16 in (131.1 mm) Depth: 1.87 in (47.5 mm) |
|---|---|
| DIMENSIONS ARCA PLATE | Height: 1.28 in (20.0 mm) Width: .79 in (117.0 mm) Depth: 1.97 in (50.0 mm) |
| WEIGHT | Without Arca Plate approximately 0.22 lbs (98.75 g) With Arca Plate approximately 0.58 lbs (262.9 g) |
| CONNECTION TO V-RAPTOR | Via 9-Pin EXT Port and Arca Plate |
| CONNECTORS | 4-Pin 00, 3-Pin Fischer, 5-Pin 0B, BNC |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.

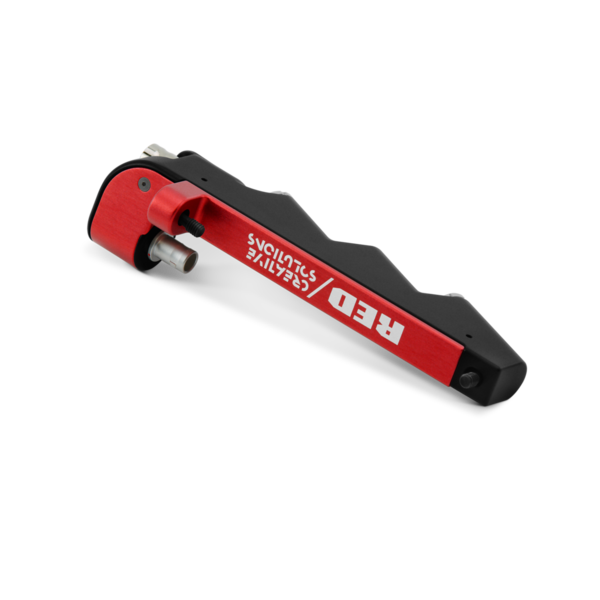

- 1x V-RAPTOR Expander Blade
- 1x Arca Plate

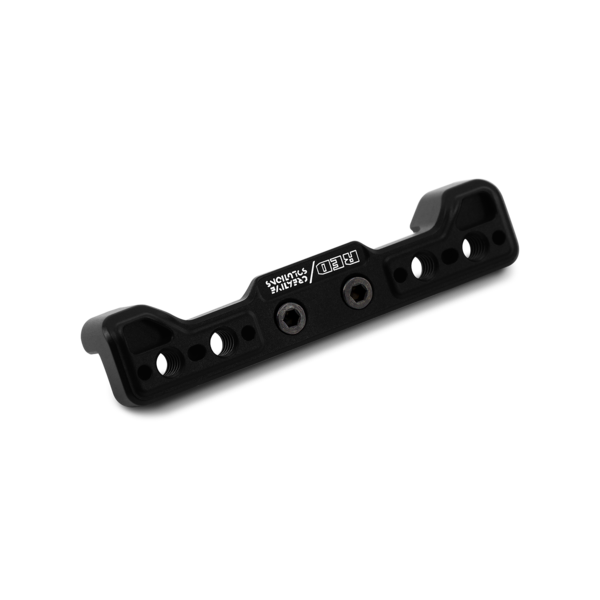

- 1x Anti-Tip Plate
