Product Info

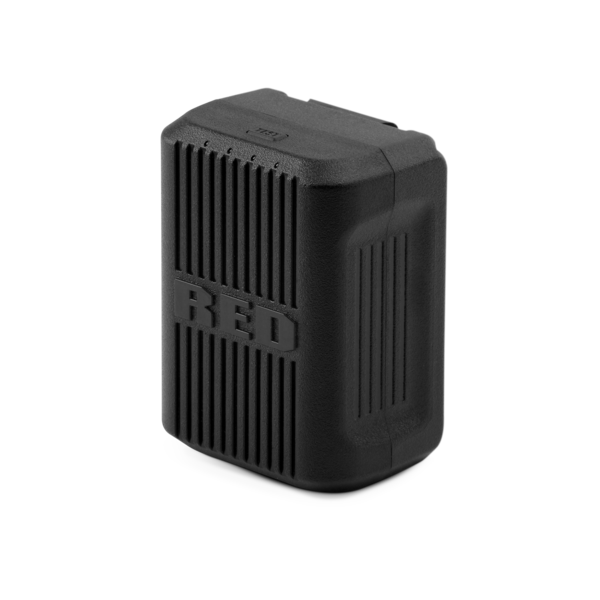

The REDVOLT® NANO-V battery is a small, lightweight power solution for the KOMODO-X™. Weighing in at only 0.63lbs (288g), it is ideal for gimbals, drones, and other setups where form factor and weight matter. The batteries dimensions (66 mm x 88 mm x 44 mm) ensure the camera retains completely flat surfaces on the top and sides, allowing users to attach various combinations of cages and plates, without issue.

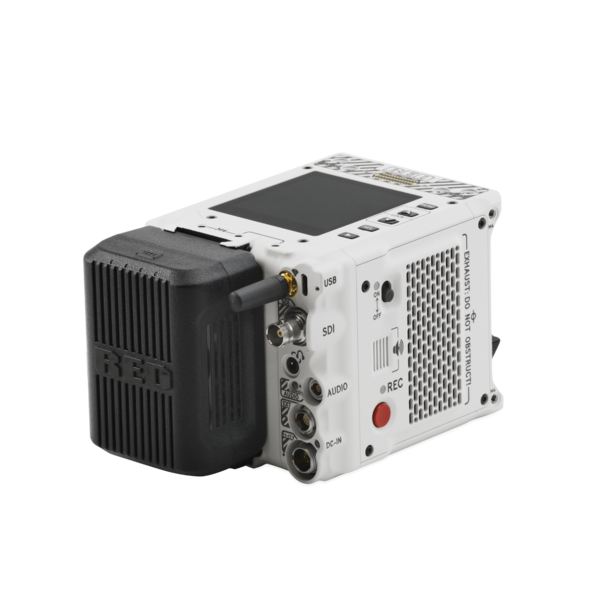

Featuring a 49 Wh capacity and with a maximum output current of 6 amps, the battery can power the KOMODO-X and DSMC3™ RED® Touch 7.0” LCD when you want to shoot in as light a configuration as possible.
REDVOLT NANO-V was designed in partnership with Core SWX and is compatible with most cameras/modules that accept V-Lock batteries. For issues or troubleshooting, please visit https://coreswx.supportsystem.com.
NOTE: Currently not shipping to Brazil, China, Mexico, Saudi Arabia, Singapore, South Africa, Thailand and UAE.
CAMERA COMPATIBILITY
| CAMERA | DSMC** | DSMC2** | RANGER** | KOMODO* | KOMODO-X | V-RAPTOR** | V-RAPTOR XL** |
|---|---|---|---|---|---|---|---|
| COMPATIBLE | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
*With correct battery adapter or battery plate.
**Physically compatible with correct battery adapter or battery plate, but 6A max draw could limit camera and accessory usage.
| DIMENSIONS | Height: 2.60 in. (66.0 mm) Width: 3.46 in. (88.0 mm) Depth: 1.73 in. (44.0 mm) |
|---|---|
| WEIGHT | Approximately .63 lbs (288g) |
| BATTERY TYPE | Rechargeable Lithium-Ion Battery |
| BATTERY CAPACITY | 3300mAh / 49Wh |
| OUTPUT VOLTAGE | 14.4 VDC |
| MAX LOAD | 6A |
| OPERATING TEMPERATURE | 10℃~45℃ (50°F~113°F) |
| CHARGING TEMPERATURE | 0℃~40℃ (32°F~104°F) |
| STORAGE TEMPERATURE | 20℃~50℃ (68°F~122°F) |
| CHARGER COMPATIBILITY | RED Compact Dual V-Lock Charger |
Tech specs reflect both current and projected information. Everything is subject to change.
