Product Info

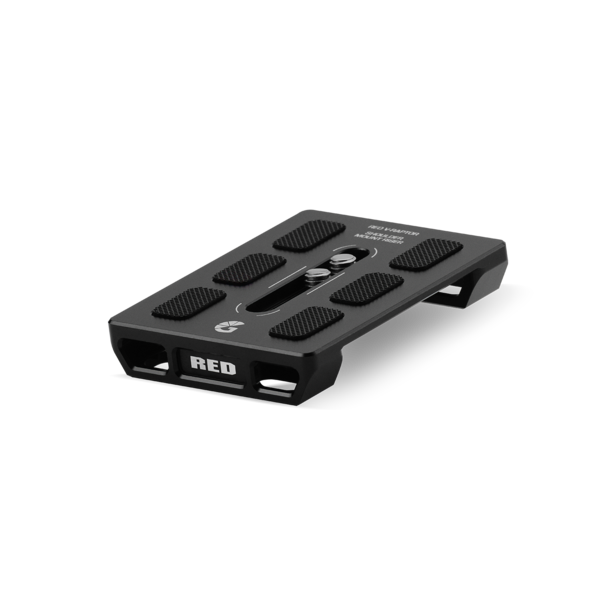

The RED® V-RAPTOR® Shoulder Mount Riser is compatible with the V-RAPTOR camera and designed for use with the RED Cine-Broadcast Shoulder Mount. The Riser Plate allows you to attach the camera and RED Cine-Broadcast Module to the Shoulder Mount at the correct optical height for 15mm LWS accessories, such as matte boxes, lens support, and wireless follow focus systems.
NOTES:
- The RED Cine-Broadcast Shoulder Mount is sold separately.
- Developed in partnership with Bright Tangerine, for issues or troubleshooting, please visit https://www.brighttangerine.com/contact-us.
- Not compatible with the V-RAPTOR Expander Blade.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | - | - | ✓ | - |
RED V-RAPTOR SHOULDER MOUNT RISER
| DIMENSIONS | Height: 0.79 in. (20.00 mm) Width: 3.35 in. (85.00 mm) Depth: 4.25 in. (108.00 mm) |
|---|---|
| WEIGHT | 0.47 lbs (214.00 g) |
| OPERATING TEMPERATURE | 32°F to 104°F (0°C to 40°C) |
| STORAGE TEMPERATURE | –4°F to 122°F (–20°C to 50°C) |
| OPERATING HUMIDITY | 0% to 85%, non-condensing |
| STORAGE HUMIDITY | 0% to 85%, non-condensing |
Tech specs reflect both current and projected information. Everything is subject to change.
