Product Info

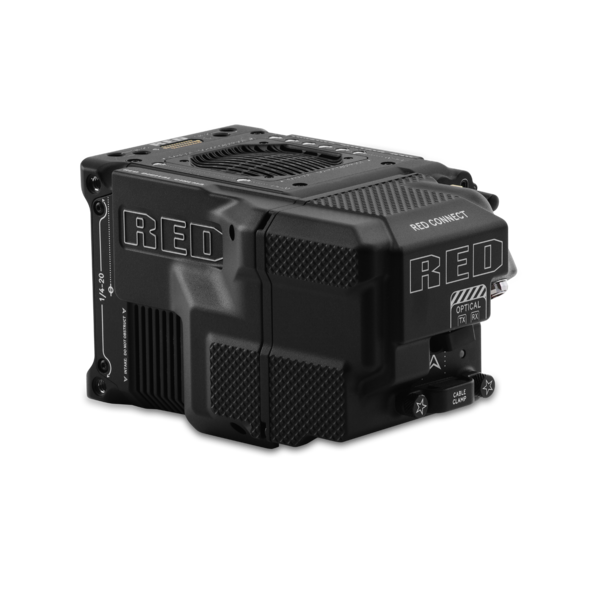

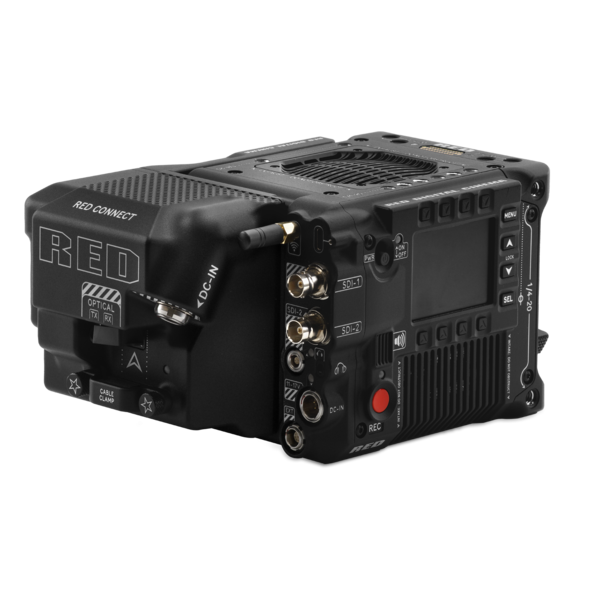

The RED® Connect Module connects to your V-RAPTOR® or V-RAPTOR® XL (V-Lock) camera to unlock 8K live cinematic streaming via the groundbreaking RED Connect solution. RED Connect enables users the ability to stream RAW R3D files direct from the V-RAPTOR and V-RAPTOR XL camera systems over IP to a camera control unit (CCU) in real-time, opening an extraordinary range of creative applications from live broadcast to virtual production to true 8K VR. Patent pending. Learn more at https://www.red.com/red-connect.
FEATURES:
- 8K 120FPS live cinematic streaming over IP (full data range 800MB/s
- Simultaneously stream and record on the CCU
- Genlock and timecode synchronization of multiple cameras using PTP (SMPTE ST 2059-2)
- Compact form factor with easy connectivity to V-RAPTOR and V-RAPTOR XL High-speed 10 Gbps connection via fiber optic cable
NOTES: A RED® Connect R3D Streaming Software Perpetual, Annual or Monthly License is required to use the RED Connect Module. Please contact a RED Sales Representative to purchase a license or additional information.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL* |
|---|---|---|---|---|---|---|
| - | - | - | - | - | ✓ | - |
*The RED Connect Module is not compatible with the Gold Mount version of V-RAPTOR XL.
| DIMENSIONS | Height: 3.87 in. (98.25 mm) Width: 3.88 in. (98.50 mm) Depth: 2.60 in. (66.00 mm) (connected to BRAIN) |
|---|---|
| WEIGHT | 0.83 lbs / 376.0 g (RED Connect Module Only) 0.15 lbs / 68.0 g (V-RAPTOR Cover Only) 0.25 lbs / 113.0 g (V-RAPTOR XL Cover Only) |
| MATERIAL | Aluminum Alloy and Rubber |
| CONNECTION TO V-RAPTOR/V-RAPTOR XL | CFexpress Media Slot |
| CONNECTORS | LC Duplex Single Mode (1310nm) |
| DC POWER INPUT | +11.5 to +34 volts DC using the integrated 6-Pin DC-IN port (XL includes a 3-Pin to 6-Pin adapter) |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
| RELATIVE HUMIDITY | 0% to 85%, non-condensing |
Tech specs reflect both current and projected information. Everything is subject to change.

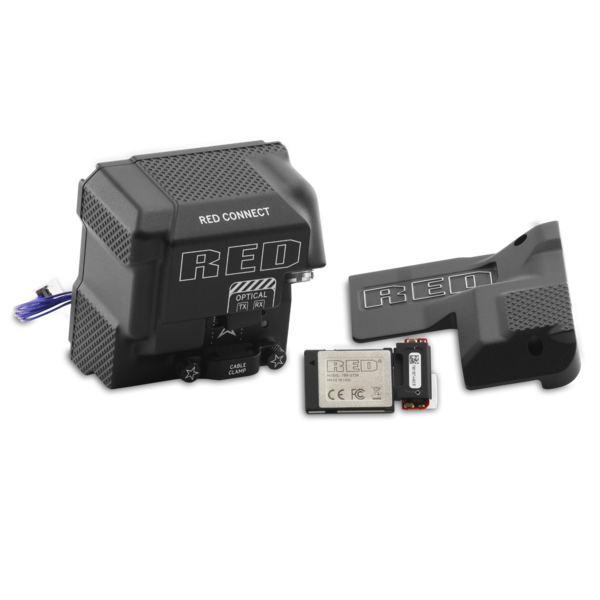

- 1x RED® Connect Module
- 1x RED® Connect Module Cover for V-RAPTOR®
