Product Info

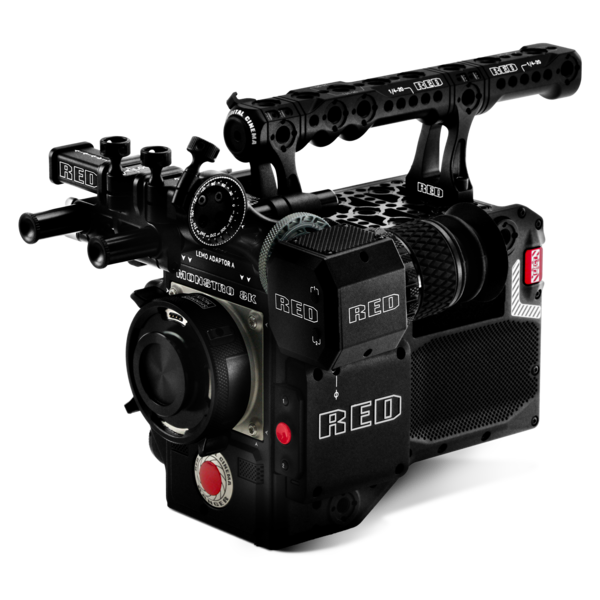

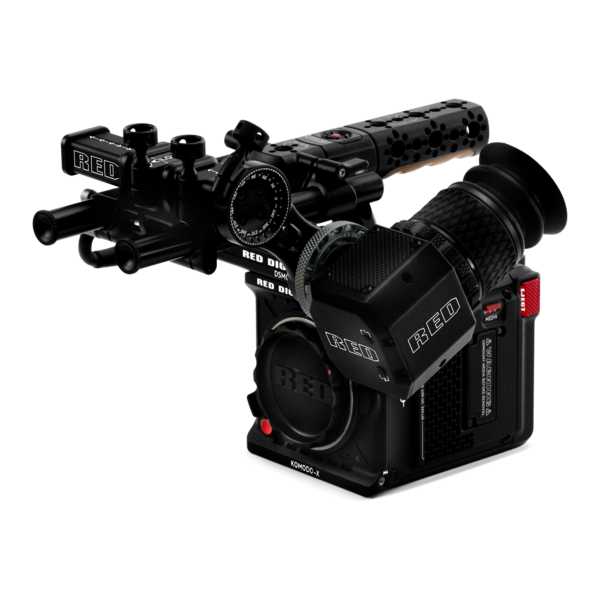

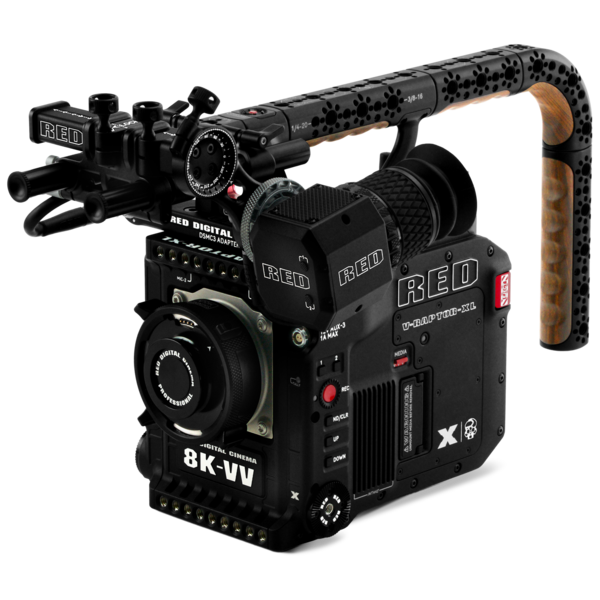

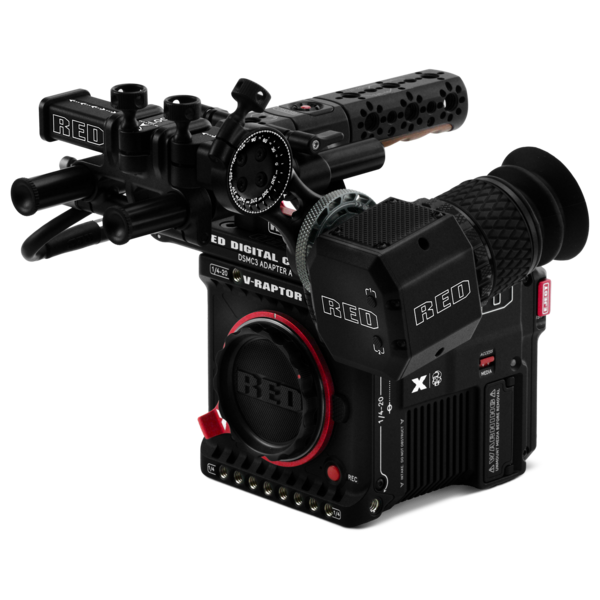

The RED® Compact EVF Pack is compatible with KOMODO-X™, V-RAPTOR®, and V-RAPTOR XL cameras. The pack includes the RED Compact EVF, a DSMC3™ Adapter A, a RED EVF Mount, and an 18” Right-to-Straight EVF cable.
This pack is ideal for users looking for a highly flexible EVF monitoring solution for their DSMC3 camera system. The EVF Mount allows you to easily position the RED Compact EVF to find your optimal operating configuration. The DSMC3 Adapter A provides a single 16-pin output to supply power, video, and data to the EVF. The RED Compact EVF gives a clear, sharp viewing experience, and allows the operator to control and adjust key camera parameters such as FPS, ISO, and White Balance, or to quickly toggle user-assignable camera features with the integrated rear buttons.

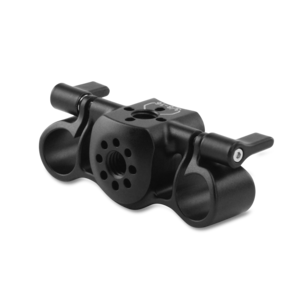

NOTE: A 15mm mounting bracket is not included. Refer to RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | - | ✓* | ✓* | ✓* |
*When used with the DSMC3 Adapter A.

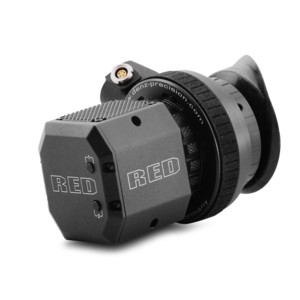

RED COMPACT EVF
| DIMENSIONS | Height: 2.43 in. (61.7 mm) Width: 2.46 in. (62.5 mm) Depth: 4.8 in. (121.9 mm) |
|---|---|
| WEIGHT | 0.8 lbs (360 g) |
| MATERIAL | Aluminum |
| CAMERA MOUNTING | Via integrated attachment wheel and RED EVF Mount or 1/4-20 mount points on included Mount Plate. |
| RESOLUTION | 1920 (width) x 1080 (height) |
| BIT DEPTH (COLOR) | 8-bit |
| CONTRAST RATIO | > 10000:1 |
| DISPLAY RATE | 60 fps |
| OPTICS | Fully coated optics with > 32° field of view, infinity focus and eye cup that accommodates standard 1.6” to 1.8” diameter eye cushions |
| DIOPTER RANGE | – 2.5 to + 2.5 diopter correction range |
| BUTTONS | Two buttons for camera control or user defined buttons |
| POWER CONSUMPTION | 2.5 W (max) |
| OPERATING TEMPERATURE | 32°F to 104°F (0°C to 40°C) |
| STORAGE TEMPERATURE | –4°F to 122°F (–20°C to 50°C) |
| OPERATING HUMIDITY | 0% to 85%, non-condensing |
| STORAGE HUMIDITY | 0% to 85%, non-condensing |
Tech specs reflect both current and projected information. Everything is subject to change.

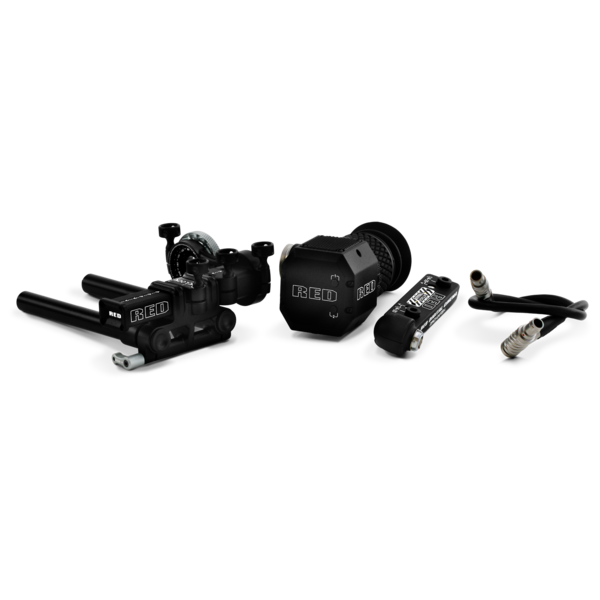

- 1x RED Compact EVF
- 1x 1/4-20 Mount Plate

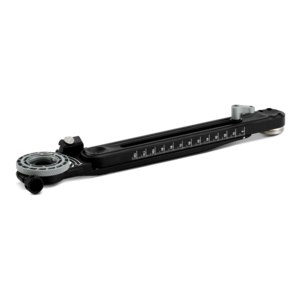

- 1x RED EVF Mount
- 2x 15 mm Rods (2.3 in. / 60 mm)
- 1x DSMC3 Adapter A
- 1x EVF Cable Right-to-Straight 18"
