The RED® Cine-Broadcast Pack, compatible with the V-RAPTOR® and V-RAPTOR® XL line of camera systems, brings powerful live broadcast capabilities with RED’s cinematic look. This module enables up to 2 channels of 4K 60P (HDR/SDR) over 12G-SDI and is IP-broadcast ready with SMPTE ST 2110 (TR-08)*. Equipped with a LEMO SMPTE 311M/304M hybrid fiber optical cable receptacle, which connects to a rack mountable 2U full rack or a half rack 4U Base Station.


Additionally, broadcasters gain access to advanced workflows with 3x, 4x super slow-motion, AI/ML augmentation and live to headset using 8K 120FPS R3Ds by using RED’s license-enabled RED Connect feature and an external CCU. The live 8K R3D workflow operates over the same hybrid fiber optical cable, offering simultaneous use with 12G-SDI transmission for maximum versatility and efficiency.


With camera FW version 1.8, RED is introducing a brand-new color pipeline for broadcast use. The Broadcast Color pipeline allows for painting of RED cameras in a live broadcast environment for on-demand adjustments and multi-camera color matching. The color can be adjusted with industry-standard RCPs to control painting parameters in real-time over IP. The painting parameters are saved per frame in the R3D metadata, allowing for a smooth transition into a non-destructive cinema workflow in post-production.


CAMERA COMPATIBILITY

DSMCDSMC2RANGERKOMODOKOMODO-XV-RAPTORV-RAPTOR XL
-----✓✓

*The RED Connect Pack for Cine-Broadcast Module, and the RED Connect license is required for advanced workflows and SMPTE ST 2110 mode, to learn more click here.

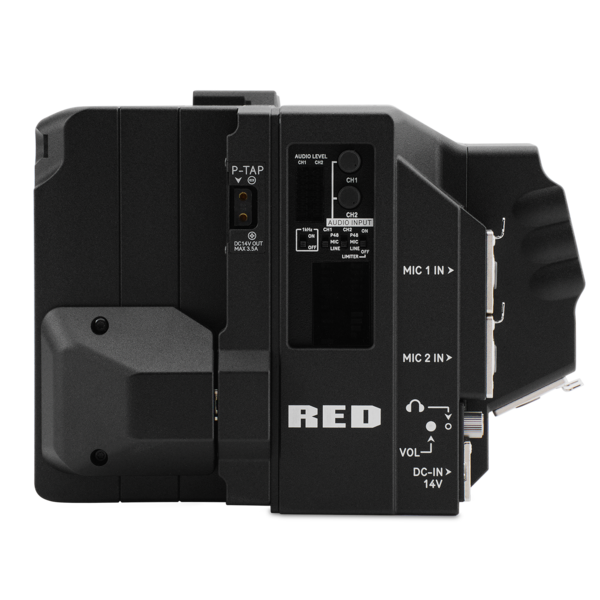

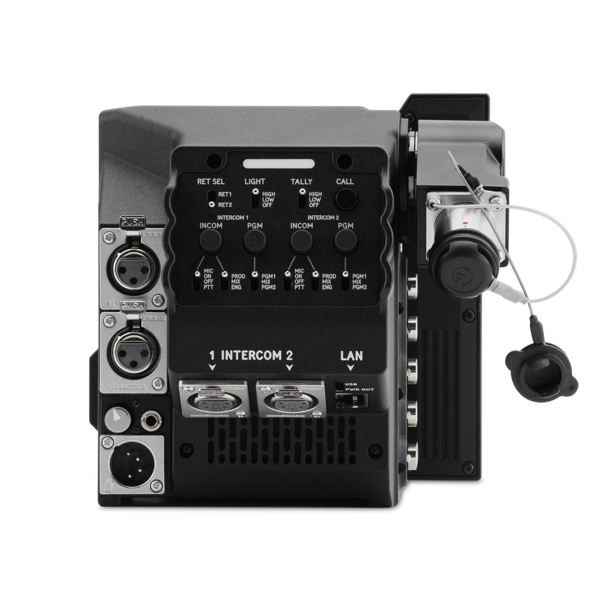

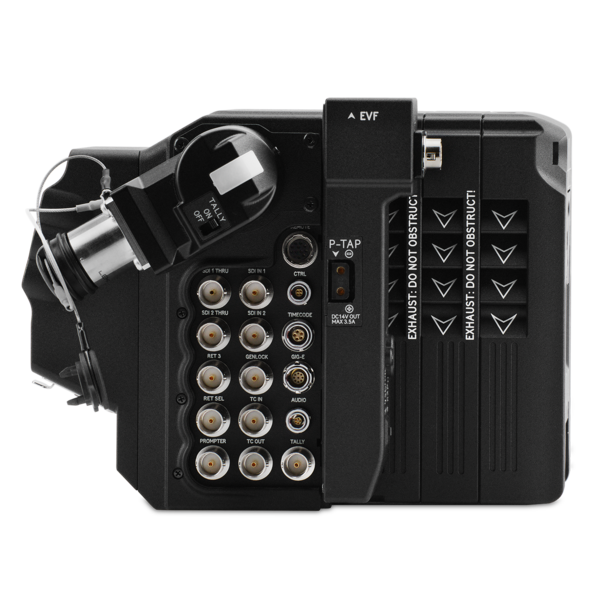

RED Cine-Broadcast Module

SDI Input
  • SDI 1 / 2
  • BNC x2
  • 12G/6G/3G/1.5G-SDI
SDI Pass-Through Out
  • SDI 1 / 2
  • BNC x2
  • 12G/6G/3G/1.5G-SDI
SDI Return Output
  • RET OUT 1 / 2
  • BNC x2
  • 12G/6G/3G/1.5G-SDI (Viewable on VF)
SDI Return Output
  • RET OUT 3
  • BNC x1
  • 12G/6G/3G/1.5G-SDI
Teleprompter Output
  • PROMPTER
  • BNC x1
  • 12G/6G/3G/1.5G-SDI
Genlock Output
  • GENLOCK
  • BNC x1
  • Tri-level
Timecode Input
  • TC IN
  • BNC x1
  • SMPTE ST 12M
Timecode Output
  • TC OUT
  • BNC x1
  • SMPTE ST 12M
Timecode into Camera
  • TIMECODE
  • LEMO 5P
  • Timecode into camera
DC Input
  • OPT
  • Via OPT Cable from Base Station
  • DC IN 14V
  • XLR 4P (male)
  • DC 14V
Power Output to Camera
  • 14V / 24V
  • Switch for V-RAPTOR (14V) or V-RAPTOR (24V) Output
Power Output
  • D-Tap
  • D-Tap x2
  • Max 14V/3.5A each
  • USB-C
  • USB-C x1
  • Max 1.5A
Audio Input
  • MIC IN 1 / 2
  • XLR 3P x2
  • MIC/LINE/Phantom +48V
    Analog 2 channels, balance, 0dBm
Audio Into Camera
  • AUDIO
  • LEMO 5P x1
  • Audio input into camera’s channel 3/4
Intercom Headset
  • INTERCOM 1 / 2
  • XLR 5P x2
  • Compatible with ClearCom, RTS and Protech
Tally Signal Output
  • TALLY
  • BNC x1
  • Green TALLY 1.0V - 3.0V / Red TALLY 3.1V - 4.5V
Tally Indicator
  • Side panel
  • LED RED x1
  • High / Low / Off Switch
Remote Connector
  • LENS
  • 12P x1
  • Canon and Fujinon lens compatible
  • REMOTE
  • 12P x1
  • RS-232/RS-422 auto detect
  • CTRL
  • LEMO 4P x1
  • CTRL protocol into camera
  • GIG-E
  • LEMO 9P x1
  • 1 Gbps for camera control (for V-RAPTOR XL only)
  • USB
  • USB-C
  • 1 Gbps for camera control
LAN Connector
  • LAN
  • RJ45 x1
  • 1 Gbps network trunk
RED CONNECT Flyover Cable
  • (Connects media port and adapter)
  • Proprietary Connector (10 Gbps)
  • Live 8K R3D or 4K JPEG-XS output via SMPTE ST 2110*
Connector
  • SMPTE 304M
  • LEMO
Operating Temperature
  • 0° to 40° (32° to 104°)
Storage Temperature
  • -20° to 50° (-4° to 122°)
Operating Humidity
  • 0% to 85% Non-condensing
Laser Safety
  • Class 1 Laser
Compliance
  • RoHS, CE, FCC
Weight
  • 6.35 lbs / 2.8kg
Dimensions (WxHxD)
  • 153mm x 154mm x 199mm (Excludes protrusions)

Tech specs reflect both current and projected information. Everything is subject to change.* Requires a RED Connect license

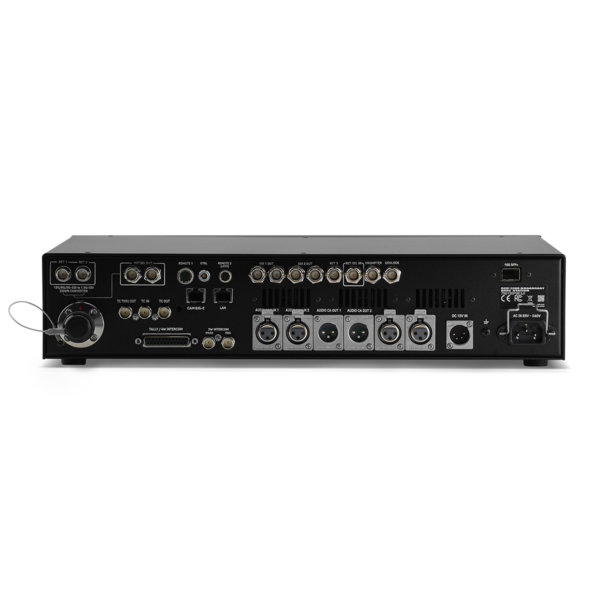

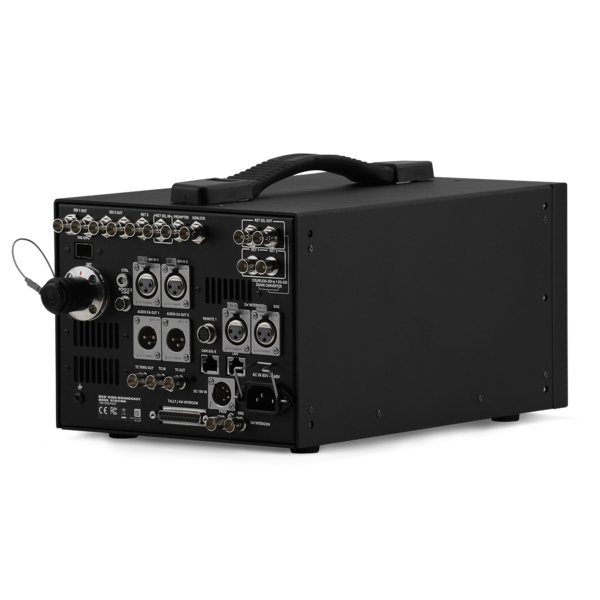

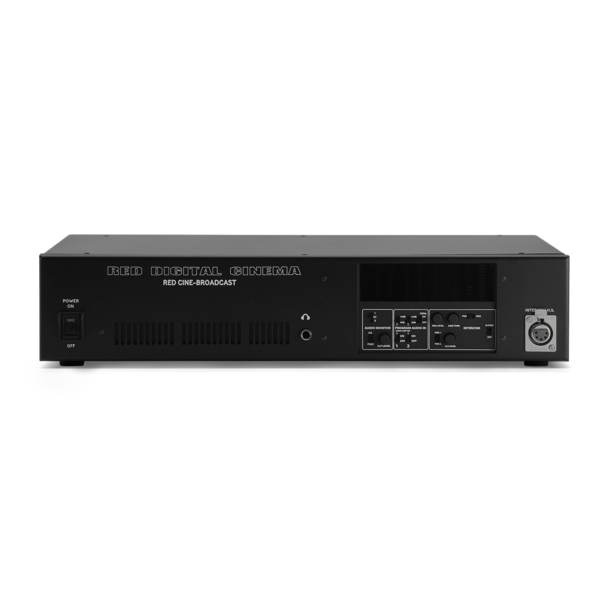

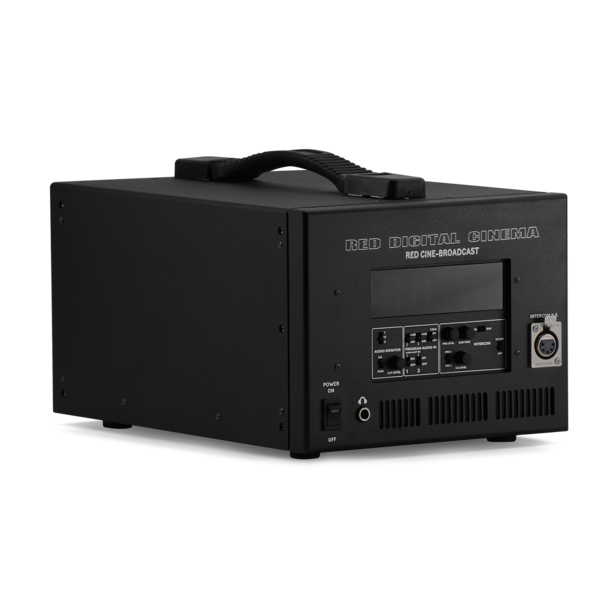

RED Cine-Broadcast Base Station (Full Rack & Half Rack)

SDI Output
  • SDI OUT 1 / 2
  • BNC x2
  • 12G/6G/3G/1.5G-SDI
SDI Return Input
  • RET IN 1 / 2
  • BNC x2
  • 12G/6G/3G/1.5G-SDI (Viewable on VF)
Return Out (SDI 1 or 2)
  • RET SEL OUT
  • BNC x2
  • 1.5G-SDI (Viewable on VF)
SDI Return Input
  • RET IN 3
  • BNC x1
  • 12G/6G/3G/1.5G-SDI
Teleprompter Input
  • PROMPTER
  • BNC x1
  • 12G/6G/3G/1.5G-SDI
Genlock Input
  • GENLOCK
  • BNC x1
  • Tri-level
Timecode Input
  • TC IN
  • BNC x1
  • SMPTE ST 12M
Timecode Output
  • TC OUT
  • BNC x1
  • SMPTE ST 12M
  • TC THRU OUT
  • BNC x1
  • TC IN input signal through output
AC Input
  • AC IN
  • IEC 60320 x1
  • 85V - 240V
DC Input
  • DC IN
  • XLR 4P x1
  • 15V
Audio Input
  • AUDIO PGM IN 1 / 2
  • XLR 3P x2
  • Analog 2 channels, balanced, +4dBm
Audio Output
  • AUDIO CA OUT 1 / 2
  • XLR 3P x2
  • Analog 2 channels, balanced, +4dBm
2W Intercom
  • PROD / ENG
  • XLR 3P x2
  • Compatible with ClearCom and RTS
  • PROD / ENG
  • BNC x2
  • Compatible with Protech (FD-400A)
4W Intercom
  • TALLY / 4W INTERCOM
  • DB-25 x1
  • Shared with Tally
Intercom Headset
  • INTERCOM H.S
  • XLR 5P x1
  • For headset
Tally Signal Input
  • TALLY / 4W INTERCOM
  • DB-25 x1
  • Shared with Intercom
Remote Connector
  • REMOTE 1
  • 12P x2
  • RS-232/RS-422 auto detect
  • REMOTE 2
  • 6P x1
  • Canon and Fujinon Lens/Iris Control
  • CTRL
  • LEMO 4P x1
  • CTRL protocol into camera
  • GIG-E
  • RJ45 x1
  • 1 Gbps for camera control
LAN Connector
  • LAN
  • RJ45 x1
  • 1 Gbps network trunk
RED CONNECT Connection
  • 10G SFP+
  • SFP+ Cage (10Gbps)
  • Live 8K R3D or 4K JPEG-XS output via SMPTE ST 2110*
Connector
  • SMPTE 304M
  • LEMO
Operating Temperature
  • 0° to 40° (32° to 104°)
Storage Temperature
  • -20° to 50° (-4° to 122°)
Operating Humidity
  • 0% to 85% Non-condensing
Laser Safety
  • Class 1 Laser
Compliance
  • RoHS, CE, FCC
Weight
  • 12.55 lbs / 5.7 kg (2U)
  • 14.75 lbs / 6.7 kg (4U)
Dimensions (WxHxD)
  • 432 x 88 x 302 mm (2U)
  • 215 x 150 x 302 mm (4U)

Tech specs reflect both current and projected information. Everything is subject to change.* Requires a RED Connect license

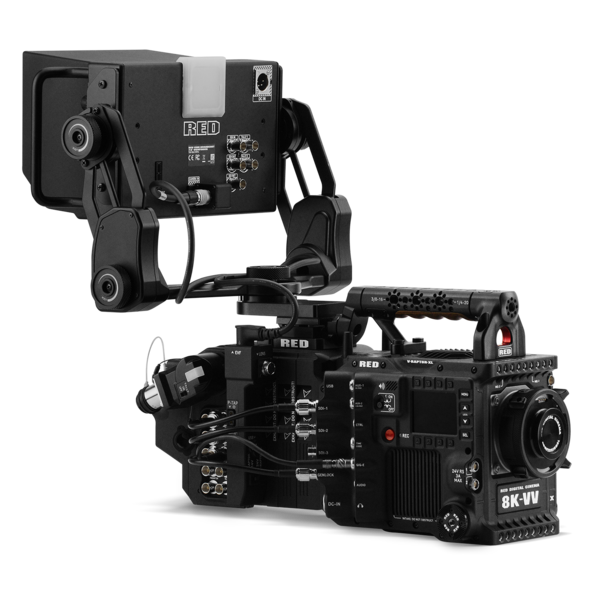

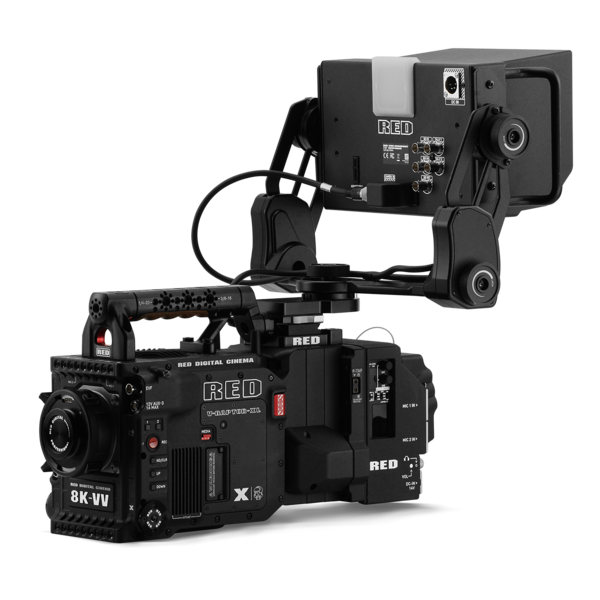

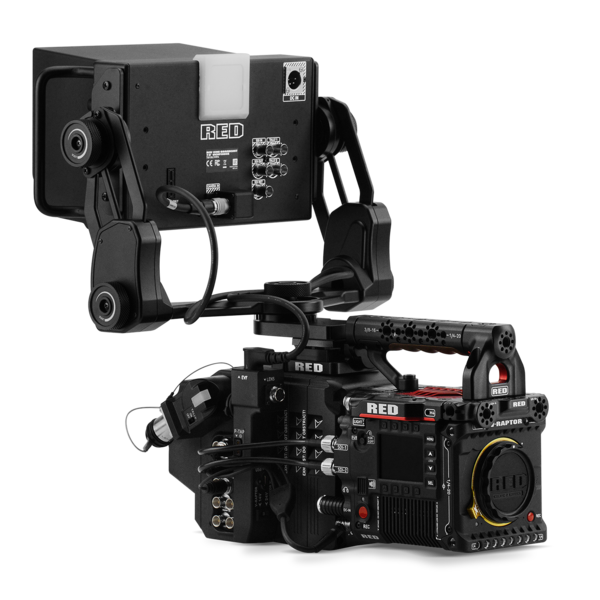

The V-RAPTOR XL [X] and V-RAPTOR XL 8K S35 Cine-Broadcast Packs include:

  • 1x V-RAPTOR XL Camera
  • 1x RED Cine-Broadcast Module
  • 1x RED Cine-Broadcast Base Station (Half Rack OR Full Rack)
  • 1x RED Cine-Broadcast 7.0" Viewfinder
  • 1x RED Cine-Broadcast Viewfinder Pro Bracket
  • 1x RED Cine-Broadcast 7.0" Viewfinder Top Handle Mounts for V-RAPTOR XL
  • 1x V-RAPTOR XL Top Handle
  • 1x RED 4-Pin-to-4-Pin CTRL (9.5")
  • 1x RED 9-Pin-to-9-Pin GIG-E (10")
  • 1x RED 5-Pin-to-5-Pin Timecode (9.5")
  • 1x RED 5-Pin-to-5-Pin Audio (9.5")

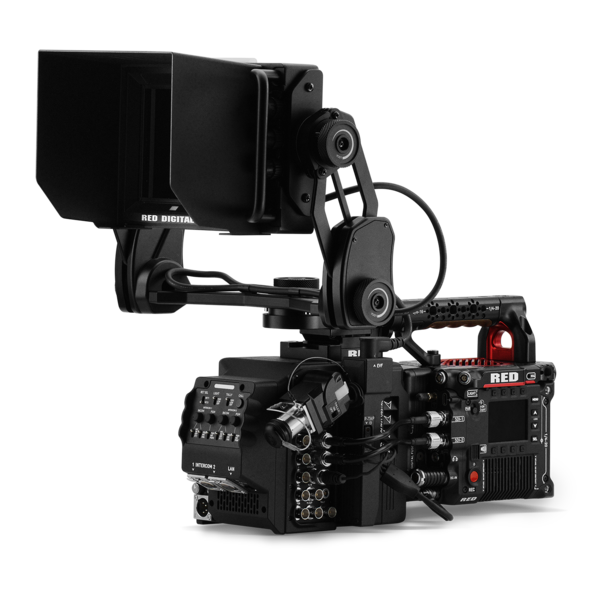

The V-RAPTOR [X] Z Mount, V-RAPTOR [X] RF Mount and V-RAPTOR 8K S35 Cine-Broadcast Packs include:

  • 1x V-RAPTOR Camera
  • 1x RED Cine-Broadcast Module
  • 1x RED Cine-Broadcast Base Station (Half Rack OR Full Rack)
  • 1x RED Cine-Broadcast 7.0" Viewfinder
  • 1x RED Cine-Broadcast Viewfinder Pro Bracket
  • 1x RED Cine-Broadcast 7.0" Viewfinder Top Handle Mounts for V-RAPTOR
  • 1x V-RAPTOR Tactical Top Plate w/ Battery Adapter Plus (V-Lock)
  • 1x V-RAPTOR Top Handle
  • 1x V-RAPTOR 5-Pin-to-5Pin Audio (9.5")
  • 1x RED 9-Pin-to-5-Pin Timecode, BNC, Genlock, and 4-Pin CTRL (11")
  • 1x RED USB-C Locking (7")
