Product Info

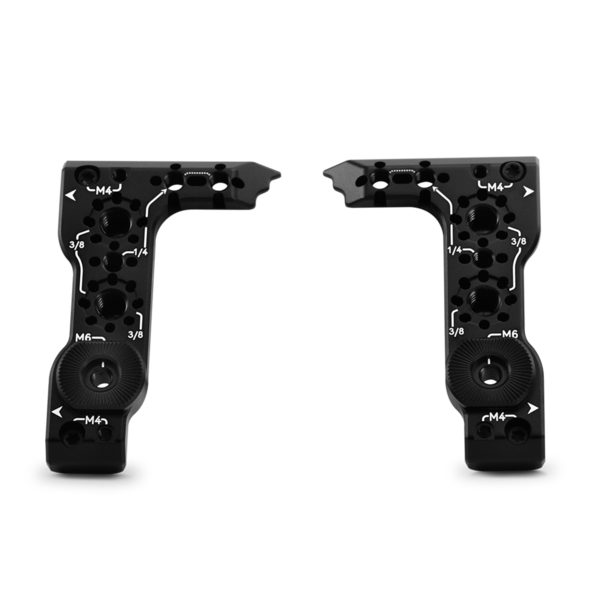

The KOMODO® Sides ribs attach to both sides of the camera and provide additional ¼-20, 3-6/16 and Arri rosette mounting points for additional accessory mounting as well as mounting points for the KOMODO® RF to PL support brackets when using the RED® RF to PL Adapter. Captive screws provide a secure attachment and allow for more convenient mount removal.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | ✓ | ✓ | - | - |
| DIMENSIONS PER SIDE RIB | Height: 3.71 in (94.25 mm) Width: 2.42 in (61.57 mm) Depth: .60 in (15.15 mm) |
|---|---|
| WEIGHT PER SIDE RIB | Approximately 0.13 lbs (59 g) |
| MATERIALS | 7075 Aluminum |
| MOUNTING TO KOMODO | 2x M4 captive mounting screws |
| RIB MOUNTING | 3x ¼-20, 2x 3/8-16, and 2x M4 mounting holes per Side Rib |
Tech specs reflect both current and projected information. Everything is subject to change.

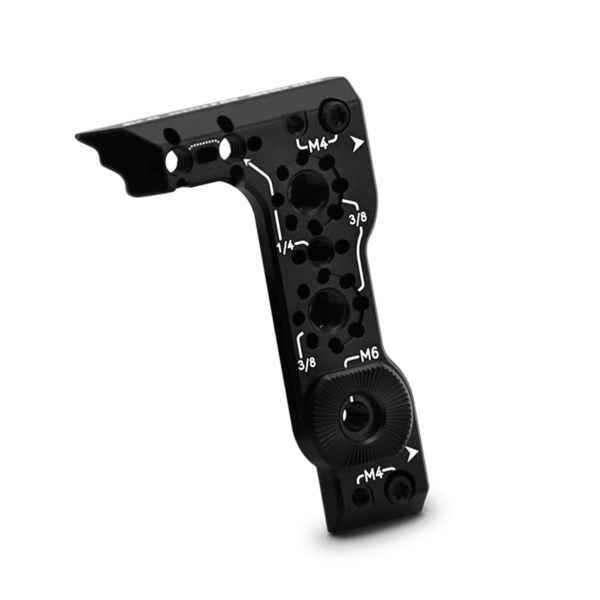

- 1x Right Side Rib

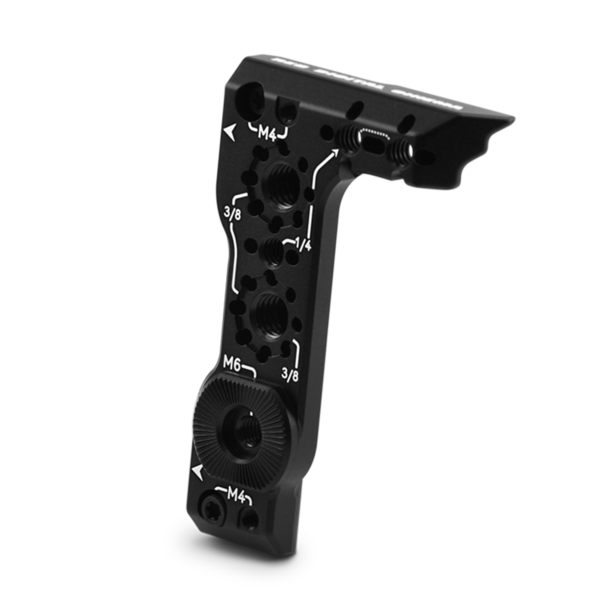

- 1x Left Side Rib
