Product Info

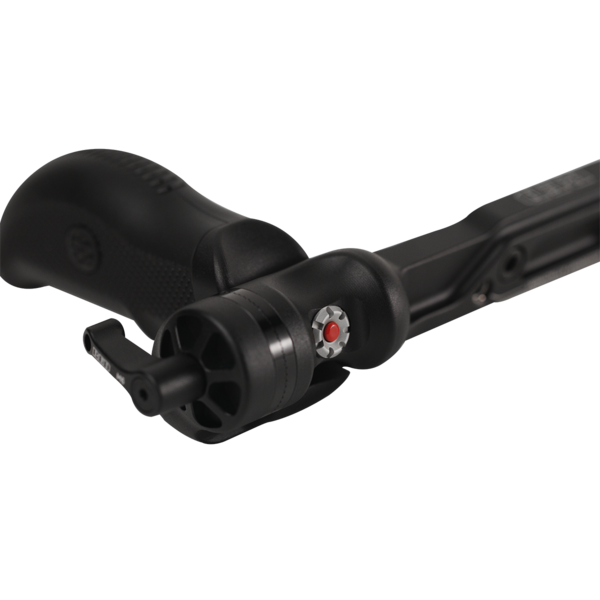

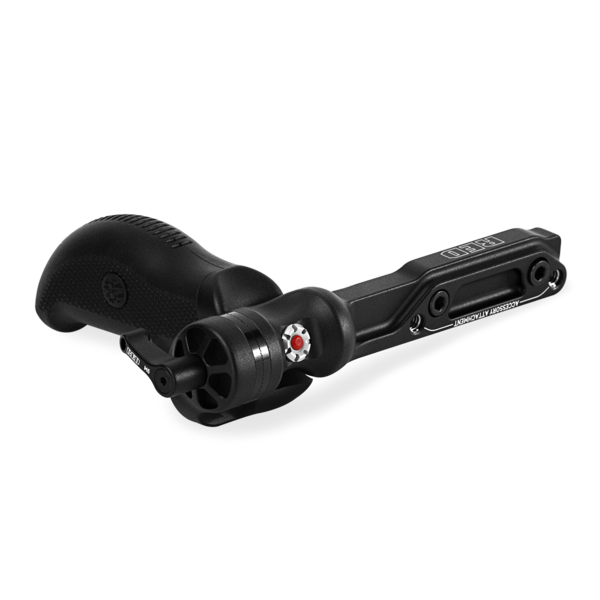

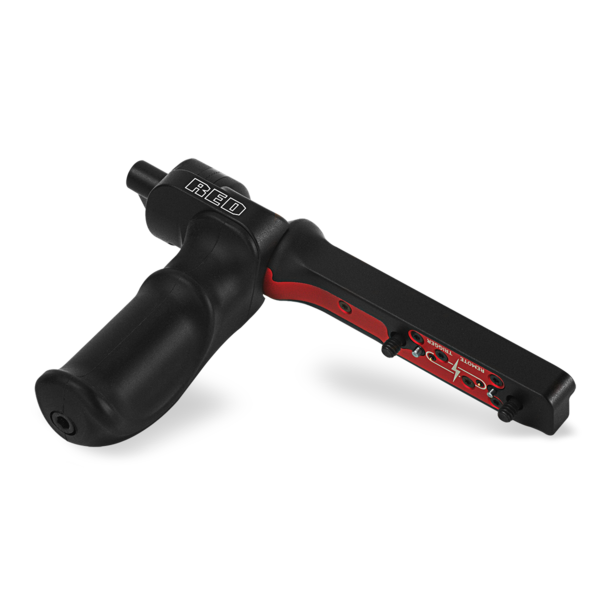

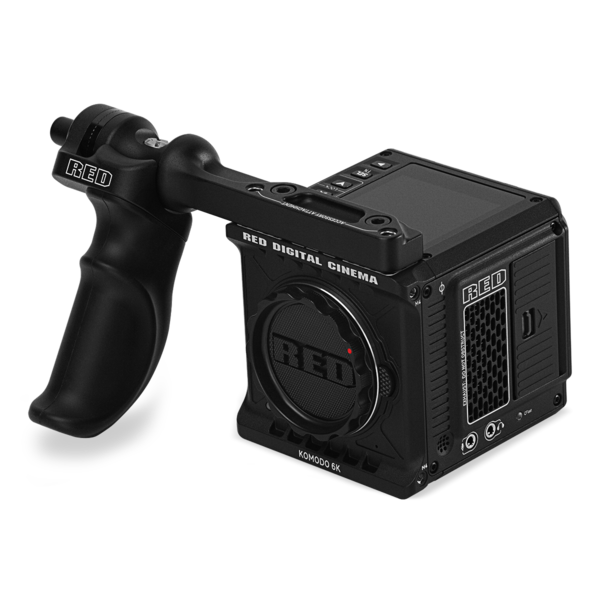

The KOMODO® Outrigger Handle is a low profile handle that offers full 360 degree swivel rotation and adjustment for maximum flexibility. Rugged design and integrated Record Start/Stop button, shooters can go into any project always ready to capture the perfect shot. The handle also has two ¼-20 mounting points for additional flexibility in rigging.
The KOMODO Outrigger Handle is ideal for shooters who use one hand on the handle for grip and record button access, and the other for lens adjustments or support.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | ✓ | ✓ | ✓ | ✓ |
| DIMENSIONS | Height: 5 in (127 mm) Width: 7.5 in (191 mm) Depth: 2.5 in (64 mm) |
|---|---|
| WEIGHT | Approximately 0.97 lbs (440 g) |
| MATERIALS | Aluminum |
| MOUNTING TO KOMODO | 2x ¼-20 captive mounting screws |
| CONNECTION TO KOMODO | KOMODO pogo connector |
| CONTROLS | RECORD start/stop button |
| ARM MOUNTING | 2x ¼-20 mounting holes |
| HANDLE RANGE OF MOTION | 360 swivel with quick handle rotation adjustment |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
| OPERATING HUMIDITY | 0% to 85%, non-condensing |
| STORAGE HUMIDITY | 20% to 85%, non-condensing |
Tech specs reflect both current and projected information. Everything is subject to change.
