Product Info

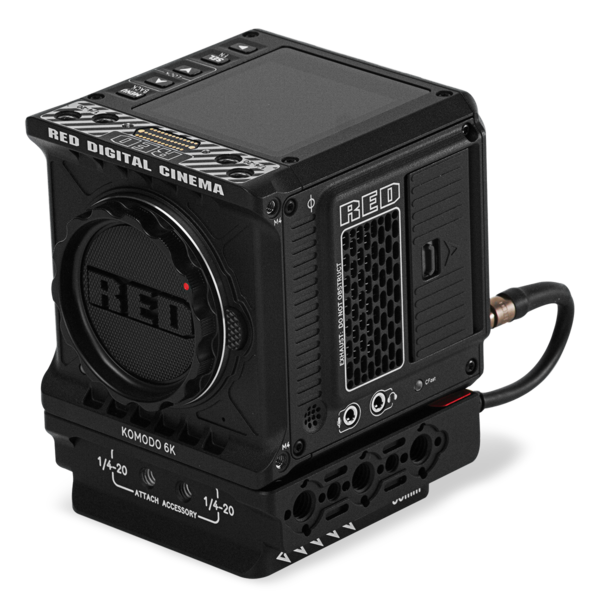

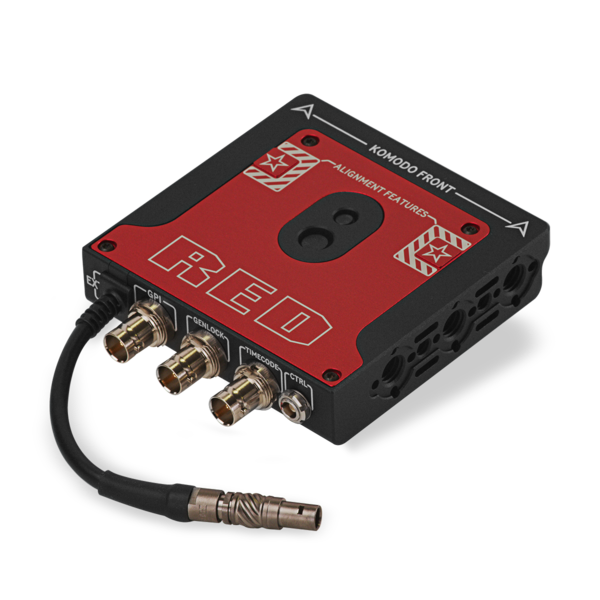

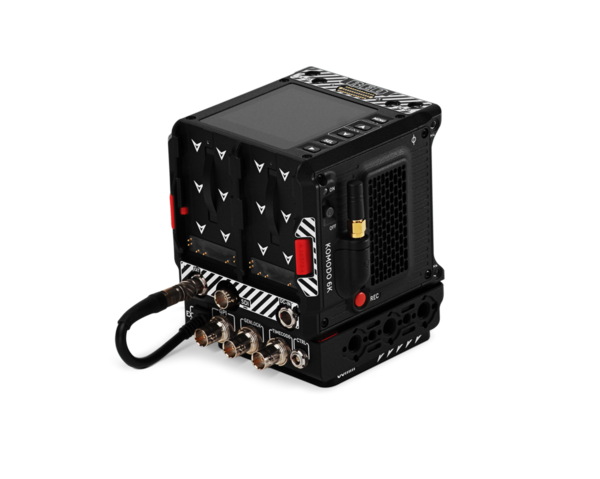

The KOMODO® Expander Module is designed to support professional shooting configurations. With options for video and communication connections, including Genlock (BNC), GPI (BNC), Timecode in (BNC) and CTRL (4-pin). The KOMODO Expander Module creates the flexibility to support a vast array of options when it comes to how users will rig their KOMODO and KOMODO-X.
Constructed from lightweight and durable aluminum alloy, the module provides a reliable option for multiple rigging solutions with multiple ¼-20 and 3/8-16 mounting points and ARRI-style locating holes along with an integrated quick-release plate.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | ✓ | ✓* | - | - |
*Not mechanically compatible with the bottom screw pattern of the camera. You will need to mount it in another position to connect to the EXT port. See RED Pro I/O Module for dedicated KOMODO-X solution.
| DIMENSIONS | Height: 1.25 in (32 mm) Width: 3.75 in (95 mm) Depth: 4.25 in (108 mm) |
|---|---|
| WEIGHT | Approximately 0.9 lbs (408 g) |
| MATERIALS | Aluminum |
| MOUNTING TO KOMODO | 1x ¼-20 and 1x 3/8-16 captive mounting screw |
| CONNECTION TO KOMODO | 9-pin EXTENSION port |

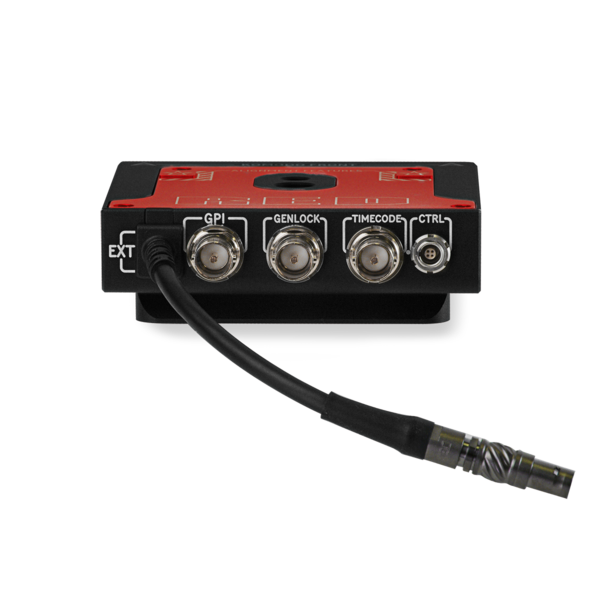

| CONNECTORS | GPI (BNC) Genlock (BNC) Timecode In (BNC) CTRL (Tally OUT /RS-232 Rx and Tx) (4-Pin 00) |

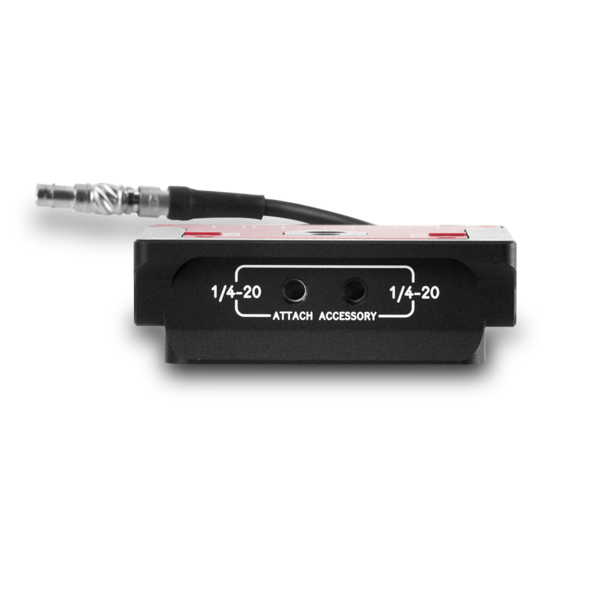

| ARM MOUNTING | 6x ¼-20 and 8x 3/8-16 mounting holes with |

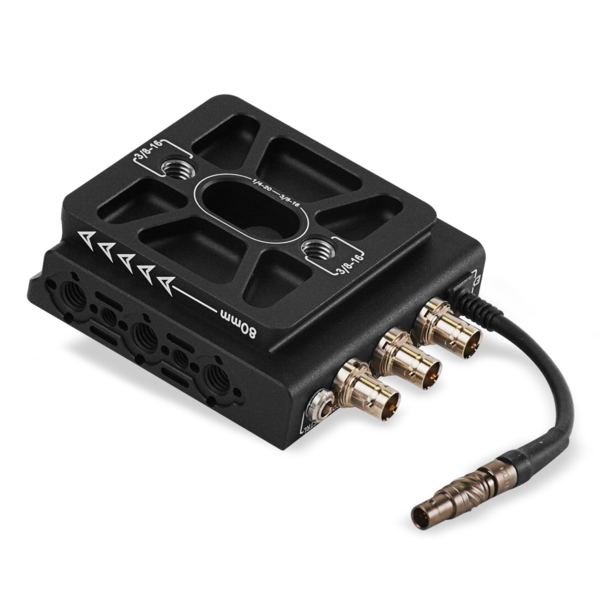

| INTEGRATED QUICK RELEASE PLATE | Compatible with the GDU 80mm Touch N Go |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
| OPERATING HUMIDITY | 0% to 85%, non-condensing |
| STORAGE HUMIDITY | 0% to 85%, non-condensing |
Tech specs reflect both current and projected information. Everything is subject to change.
